Selective Soldering
PRO SERIES
PROFESSIONAL Selective Soldering
With the industry’s growing focus on energy efficiency, material savings, and environmental sustainability, selective soldering is becoming increasingly favored in PCB assembly application. Not only supports a cleaner production, also provides precise soldering that reduces thermal stress and waste, making it the top choice for high-quality electronics manufacturing industry.
ELECTROMAGNETIC SOLDER PUMP SYSTEM
Stable Wave
Circulate and pump solder without mechanical parts, ensuring continuous smooth solder flow. The technology eliminates wear and tear from moving parts, making it a low-maintenance part to take care.
Minimal Dross
With the small exposure surface area and integration with nitrogen gas heating system, Pro Series selective soldering minimizes dross formation and ensures consistent high-quality results.

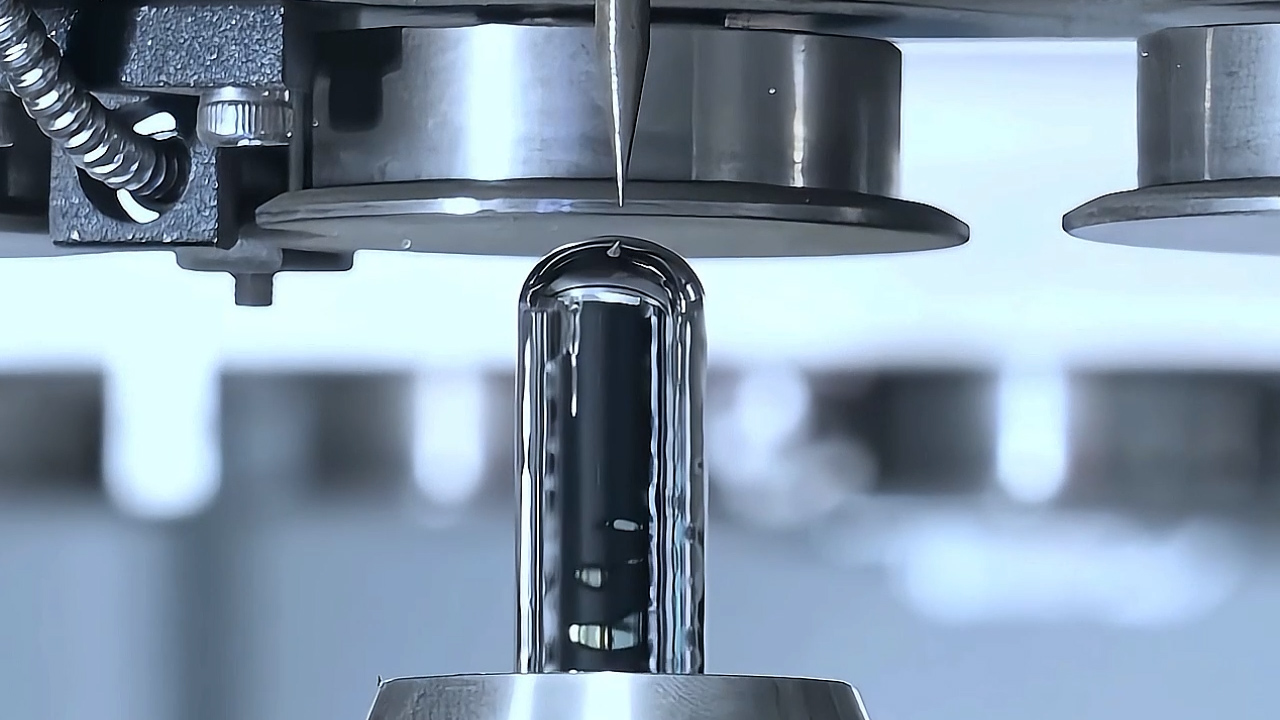

Wave Height Monitoring
Our closed-loop wave height monitoring system continuously monitors and automatically adjusts the wave height to your exact set-points. The feature is essential to guarantee unwavering solder profile consistency and repeatable solder joint quality across high-volume production runs.
Precise Fluxing | Minimal Waste
Germany Jet Fluxer
Engineered for accuracy with our 130μm micro-diameter Germany jet fluxer, selective fluxing reduces up to 90% of flux than the conventional spray fluxing without compromising soldering quality.
Dual Flux Head
Boost efficiency with the optional dual flux head high-speed fluxing. The automatic pitch adjustment ranges from 90 – 260 mm, ensuring seamless transitions between different product sizes. (Optional)
Ultrasonic Fluxing
Ready to integrate with Sono-Tek ultrasonic fluxing nozzle Z-Select-S to produce a focused air-shaped spray. Designed for superior edge-to-edge coverage and through-hole penetration. (Optional)
Superior Quality | Highest Throughput
Built-In Preheating
With top hot air convection and bottom IR preheaters, delivers uniform heat distribution across dense assemblies and effectively activates flux in short time.
Auto Solder Wire Feeding
Automatically add in 2.5mm diameter solder wire when low solder level is detected, minimizing human intervention to ensure non-stop production.
Auto Nozzle Cleaning
Cleaning the oxides on solder nozzle surface periodically with adipic acid to deliver consistent soldering quality at minimal maintenance frequency. (Optional)
Dual Solder Pot with Independent Z-axis Control
Minimize the cycle time with our dual-pot selective soldering system, designed to double up productivity by simultaneous soldering.
Featuring automatically adjustable pitch range from 90mm to 260mm, the system provides flexibility to adapt a wide variety of product dimensions,
ensuring high-speed precise soldering and minimal downtime across diverse manufacturing requirements. (Optional)

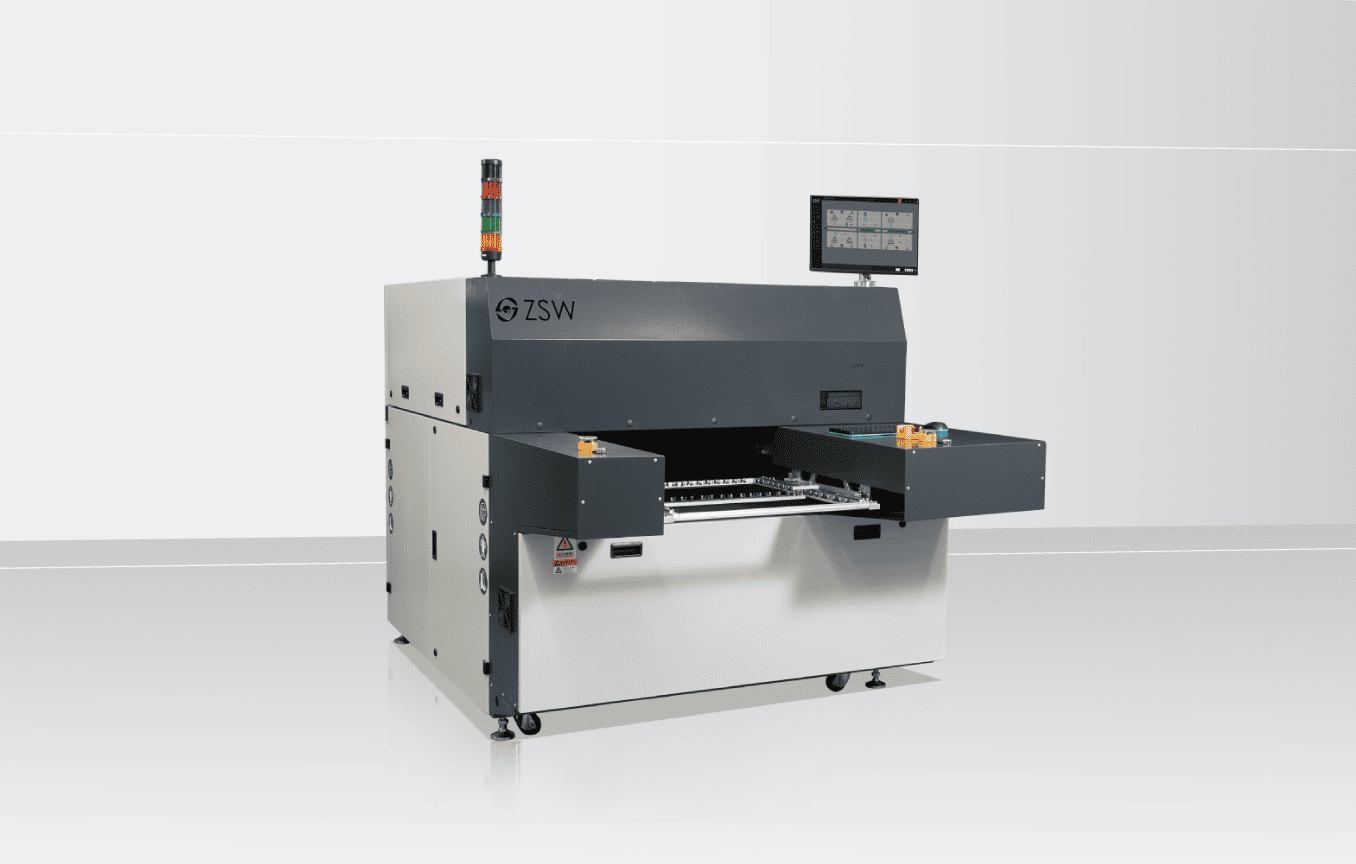

Standalone Selective Soldering
ALL-IN-ONE unit integrates with fluxing, preheating & selective soldering.
Though its compact footprint, this model Pro-FS61 packs the full advantages of Pro Series to ensure reliable quality at the same time. With a compact footprint of <3.7 sqm, making this model a perfect choice for manufacturers seeking for high performance without compromising on valuable floor space.
